Packaging Standard for:

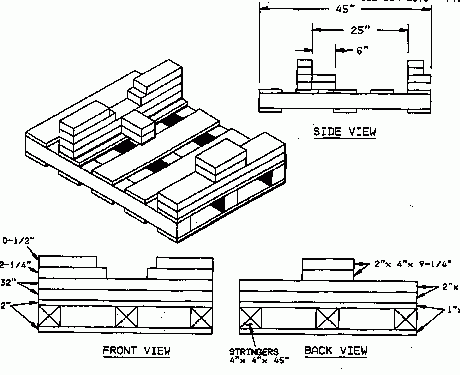

VIBRATOR ASSEMBLY CRADLE FOR FAIRMONT TAMPER. ELECTRIC AND HYDRAULIC VIBRATOR ASSEMBLIES
Number: VIB-40
Dimensions (inches)
Height: 14 Width: 32 Length: 45
Height: 14 Width: 32 Length: 45
Std. Qty. Varies
Gross Weight (LBS): 50
Date: 6/2016
Revision:
Description:
Lumber:
Hard or Softwood as required.
Air dried and surfaced as required.
Grade No. 3 common or better.
Secure deck boards to stringers (S2E) with No. 10 wire gauge, cement coated screw type nails, or 3″ resin coated spring steel staples.
Lead boards have 3 nails in each end and center, while the other boards have 2 nails at the ends and center.
Deck and bottom boards are 1″ S1S to .875″, or S2S to .75″. If S1S is used, the rough side should be out.
All Cradle Boards secured to deck with same fasteners as described above. (No nails or staples should protrude through the deck boards.)
Pallet size may vary. Cradle size must be as outlined above to provide secure, safe movement.
