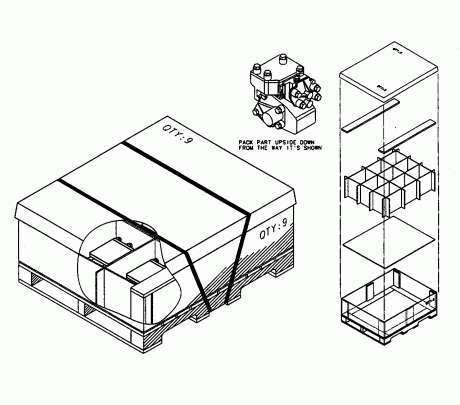

Place one emergency portion on its side in each of nine partition cells in a water-resistant crate with lid. All valve openings must be protected with a temporary plastic cover. The customer may specify that the center cell be left empty thereby reducing the quantity to 8 and the weight by about 60 pounds. Packaging items in this fashion would eliminate the need to reach to the center of the crate for a part.
The crate and lid are secured to the pallet with two .50″ non-metallic bands.
Pallet:PAL-4 Crate:CRA-5 Partitions:PAR-1
