Packaging Standard for:
U-TUBE, GE LARGE LOCOMOTIVE TRACTION MOTOR
Number: TUB-32
Dimensions (inches)
Height: 29 Width: 25 Length: 45.5
Height: 29 Width: 25 Length: 45.5
Std. Qty. 1
Gross Weight (LBS): 600
Date: 6/2016
Revision:
Description:

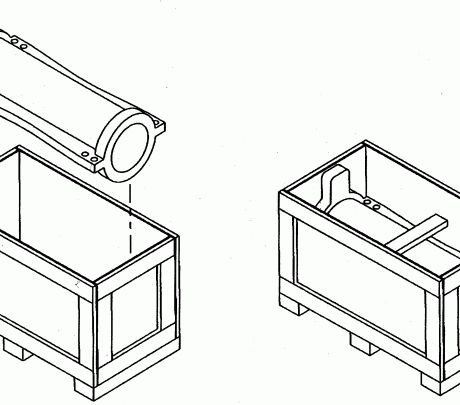

U-Tubes are individually packaged in specially designed wooden crates with outer dimensions (OD) of 45.5″ x 25″ x 29″. In order to stabilize the U-Tube, two L-shaped cradles made of a 2″ x 6″ x 22.25″ and a 2″ x 4″ x 22.25″ are placed together on edge inside the crate. The crate is constructed of plywood and framed with 1″ x 4″ lumber. Three 3″ x 4″ runners are applied to the outside bottom of the crate. After the U-Tube has been put into the crate on the cradles, a 2″ x 4″ x 22.25″ board is placed inside and over the U-Tube and is attached to the side walls of the crate. This will provide integrity to the package.
Crate: SPECIAL
