Packaging Standards

Packaging Standard for:

STABILIZER WITH SPRING, NEW HYDRAULIC HS-10

Number: STA-3A
Dimensions (inches)
Height: 18  Width: 48  Length: 48
Std. Qty. 36
Gross Weight (LBS): 895
Date: 6/2016
Revision:

Description:

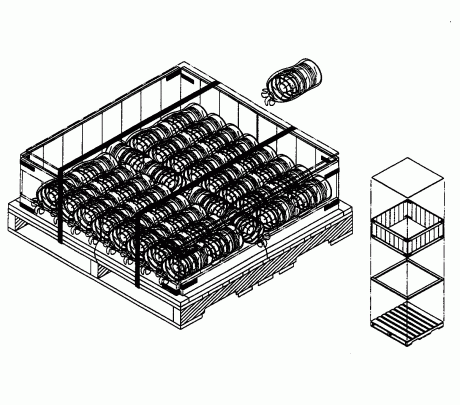

Each stabilizer body and its body spring is bagged together and is placed on its side in a crate. There are four rows with eight stabilizers per row for a total of 32. Four stabilizers are placed perpendicular to the others in the center of the crate for a package total of 36.
Rim strips are attached to the perimeter of the pallet. Two measure 1″ x 1″ x 48″ and two 1″ x 1″ x 46″. A 4′ x 4′ wooden lid may be placed on top of the crate and secured with two .50″ non-metallic bands.
Pallet: PAL-6Crate:CRA-3 or equivalent Bag:BAG-2
