Packaging Standard for:
SADDLE, UNITRUCK
Number: SAD-1
Dimensions (inches)
Height: 18 Width: 29 Length: 47
Height: 18 Width: 29 Length: 47
Std. Qty. 4
Gross Weight (LBS): 1344
Date: 6/2016
Revision:
Description:

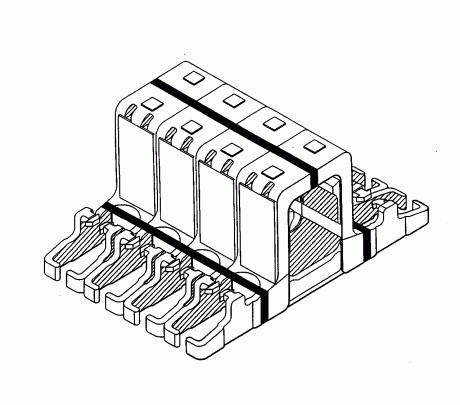

Place 4 saddles parallel to each other. Three 1.25″ non-metallic bands are applied around the saddles to unitize the package. Place one on each end and one through the top center for a total of three non-metallic bands. Neither wood blocks nor a pallet are required for this arrangement. Mechanically lift through the center opening.
