Packaging Standard for:
LINER, LOCOMOTIVE CYLINDER
Number: LIN-30
Dimensions (inches)
Height: 38.5 Width: 36 Length: 36
Height: 38.5 Width: 36 Length: 36
Std. Qty. 9
Gross Weight (LBS): 1450
Date: 6/2016
Revision:
Description:

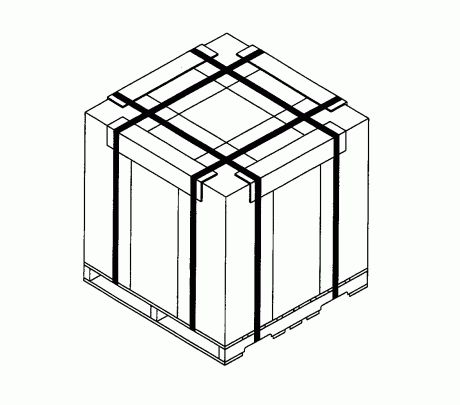

Liners are placed in corrugated cases measuring 12″ x 12″ x 33″. Nine cases are placed on a pallet. Each case is to have the case weight printed on it in a prominent location.
The cases must be secured to the pallet with four non-metallic .4375″ bands.
Pallet: PAL-12 Box: BOX-1
