Packaging Standards

Packaging Standard for:

GUARD, AXLE (1)

Number: GUA-1A
Dimensions (inches)
Height: 24  Width: 65  Length: 48
Std. Qty. 10
Gross Weight (LBS): 2500
Date: 6/2016
Revision:

Description:

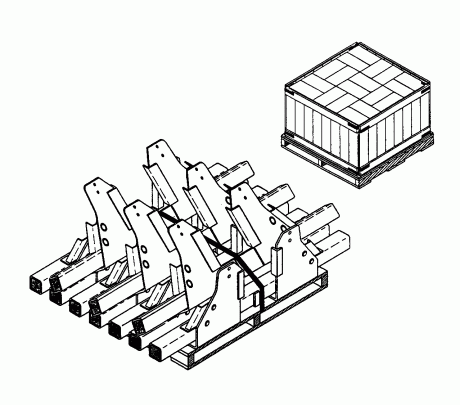

The package is unitized by placing ten axle guards in two layers on a pallet. The first layer contains seven axle guards and the second layer consists of three pieces. The package is banded together and to the pallet with a 1.25″ non-metallic band. While each piece in the first layer is placed in alternating directions, pieces in the second layer all face the same direction. Accessory small parts are put in corrugated boxes and then into a crate.
(1) for Axle Guards: Pallet: PAL-3
(2) for Accessories: Pallet: PAL-12
Crate: CRA-4 or equivalent Box: BOX-1
