Packaging Standards

Packaging Standard for:

CUP, 9″ PACKING

Number: CUP-3
Dimensions (inches)
Height: 45.50  Width: 42  Length: 48
Std. Qty. 32 cases
Gross Weight (LBS): 825
Date: 6/2016
Revision:

Description:

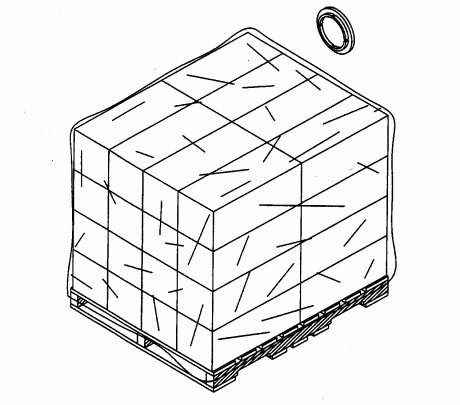

Two Stacks of cases are placed on the pallet. The first stack consists of four layers of four cases per layer placed on their side for a total of 16 cases. The second stack also consists of four layers of four cases per layer placed on their sides with the same orientation as the first stack for a total of 16 cases. The grand total of cases per pallet is 32. Each case is to have the case weight printed on it in a prominent location. Case size is 25″ x 10″ x 10″ and typically contains 25 packing cups.
The case stacks must be secured to the pallet with stretch wrap.
Pallet: PAL-2 or PAL-5 Box:BOX-1
