Packaging Standard for:
ASSEMBLY, GE RETURNABLE POWER
Number: ASY-31
Dimensions (inches)
Height: 67 Width: 34.25 Length: 44
Height: 67 Width: 34.25 Length: 44
Std. Qty. 1
Gross Weight (LBS): 1700
Date: 6/2016
Revision:
Description:

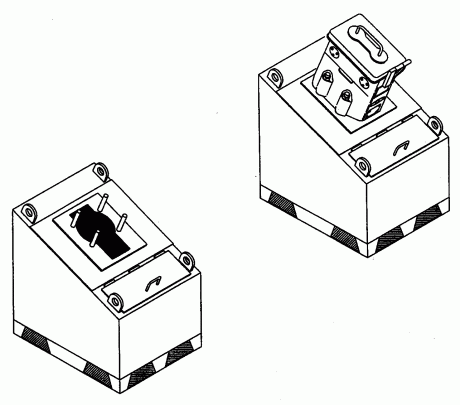

Place 1 assembly in the custom built steel container and bolt down to the four threaded studs. The empty container measures 34.25″ x 44″. It is 45″ high at the back and 26.5″ high in the front. The container top measures 34.25″ x 47.5″ and slopes from back to front at a 67 degree angle. The storage door opening in the front part of the container measures 9.25″ x 27.75″ x 9.25″ deep.
Container: RETURNABLE
