Packaging Standard for:
ADAPTER, ROLLER BEARING 5.5″ x 10″
Number: ADA-1
Dimensions (inches)
Height: 26 Width: 35 Length: 35
Height: 26 Width: 35 Length: 35
Std. Qty. 112
Gross Weight (LBS): 1620
Date: 6/2016
Revision:
Description:

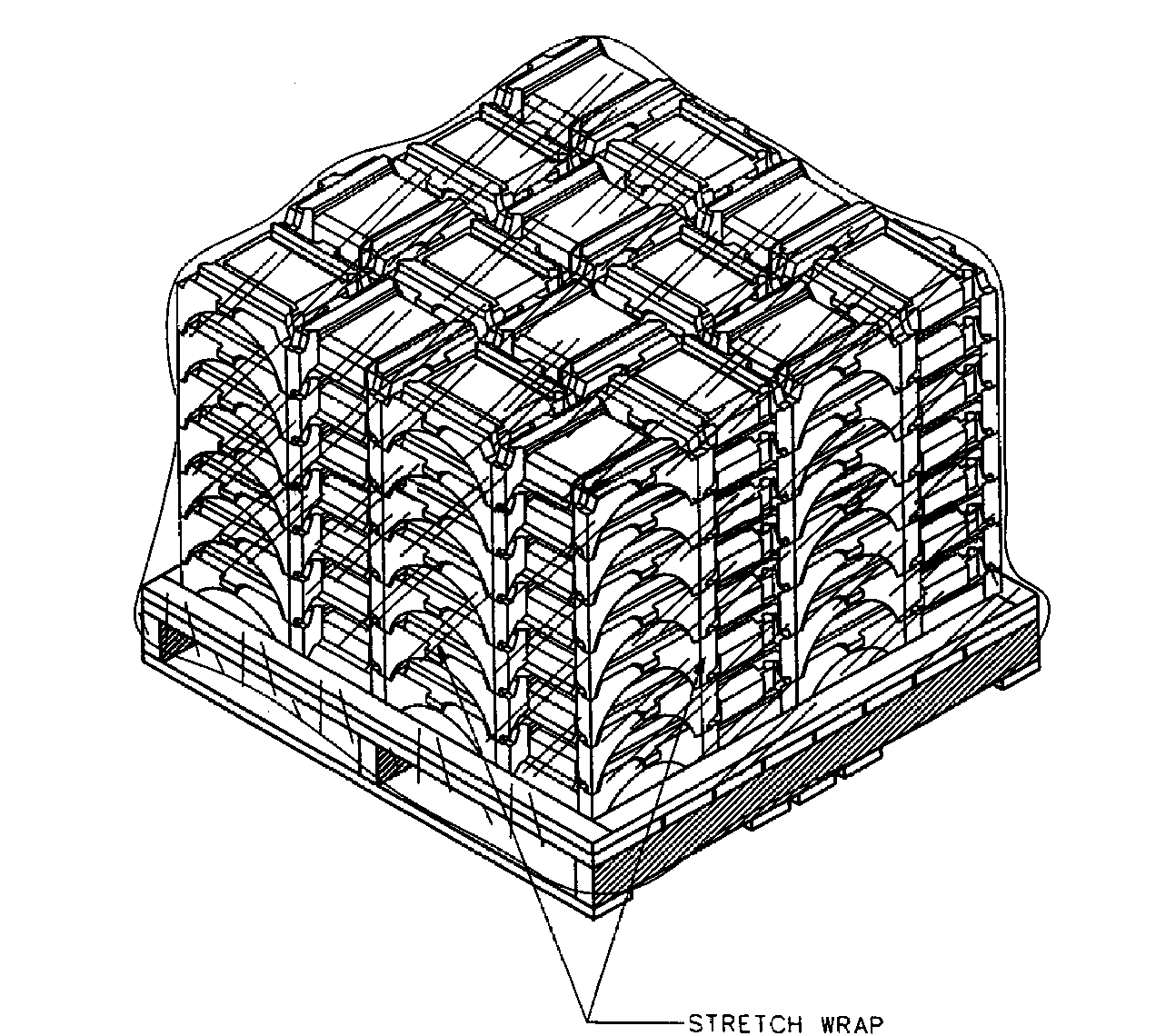

Seven layers of 16 adapters per layer are to be stacked in alternate directions and nested in place on a 35″ x 35″ pallet. Four 1.5″ x .75″ hardwood rim strips shall be nailed to the top edge of the pallet to create a flange. The adapters are to be secured to the pallet with no less than 9 wraps of 0.381 mm stretch wrap. Pallet: SPECIAL
